Plywood floor support
Author
Discussion

Rollin

Original Poster:

6,287 posts

267 months

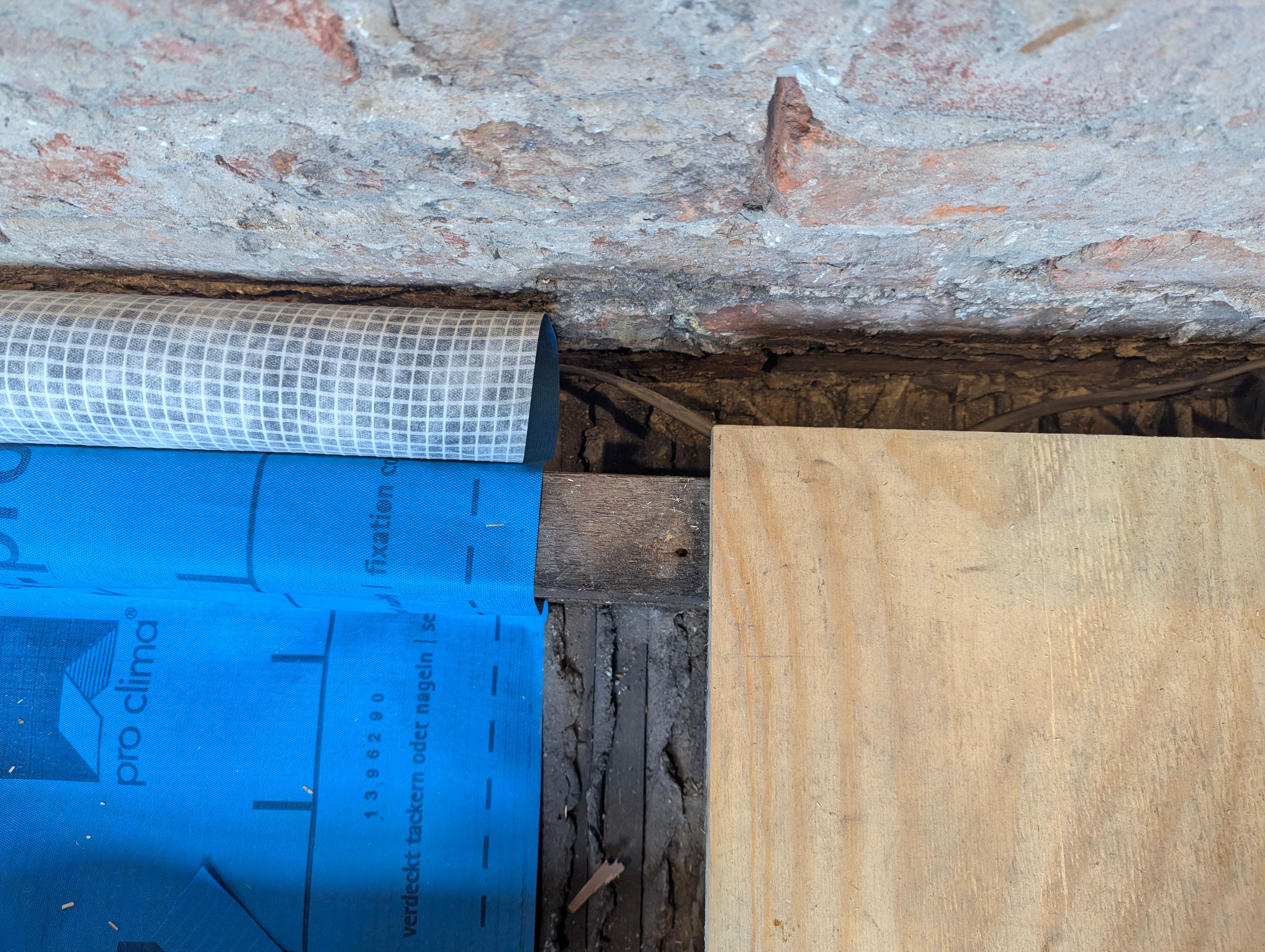

I'm laying a new plywood floor in a kitchen. There is a gap between the brick internal wall and last joist, which is parallel to it, of about 4 inches.
Do I need to support the board at the wall as it's going to be a pain to attach some timber there.
Plywood is going to be either 18mm or 22mm. The unsupported edge is under kitchen cabinets also.

B'stard Child

30,752 posts

268 months

Rollin said:
I'm laying a new plywood floor in a kitchen. There is a gap between the brick internal wall and last joist, which is parallel to it, of about 4 inches.
Do I need to support the board at the wall as it's going to be a pain to attach some timber there.
Plywood is going to be either 18mm or 22mm. The unsupported edge is under kitchen cabinets also.
If I've understood what you are describing - this is normally where the flooring went down before the internal wall went up and you've removed the original floor at the wall edge

Can you not sister a support to the last joist of 4 inches to fill the gap and create the support

JoshSm

3,305 posts

59 months

You don't have to fully support it, just enough to not leave the board hanging.

A bit of 2x4 (or 3x4) alongside glued & screwed through the existing joist in a few places would likely be plenty. Doesn't need to act as a full joist or add load capacity, just provide a bit of extra support for the edge.

It'd likely work without anything extra but if you can why not.

Rollin

Original Poster:

6,287 posts

267 months

B'stard Child said:
Rollin said:
I'm laying a new plywood floor in a kitchen. There is a gap between the brick internal wall and last joist, which is parallel to it, of about 4 inches.
Do I need to support the board at the wall as it's going to be a pain to attach some timber there.
Plywood is going to be either 18mm or 22mm. The unsupported edge is under kitchen cabinets also.
If I've understood what you are describing - this is normally where the flooring went down before the internal wall went up and you've removed the original floor at the wall edge

Can you not sister a support to the last joist of 4 inches to fill the gap and create the support
Yes, it's an old house. I removed the knackered floor boards and a rotten joist. The floorboard weren't supported on the edge either



Chumley.mouse

890 posts

59 months

Clamp a length of 3/4x2 between the joist and wall , then just screw through into it.

Rollin

Original Poster:

6,287 posts

267 months

Thanks all
