Help with strange 3-gauge instrument panel
Discussion
I have inherited a 1991 Mini 1000 where the previous owner was in the process of making substantial changes to the dash but left no notes or manuals.

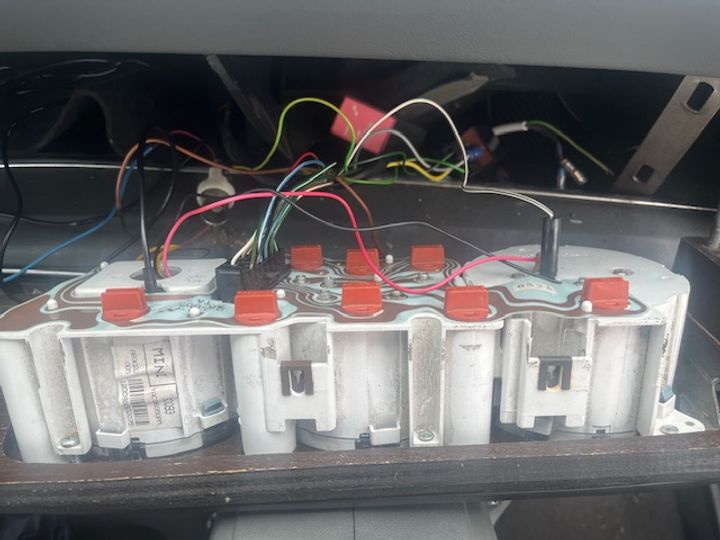

There are several loose wires at its back and some wires are just pushed into the holes in terminals.
The instrument cluster is marked S0093 and YAC106950PM but I drew a blank when I searched these.

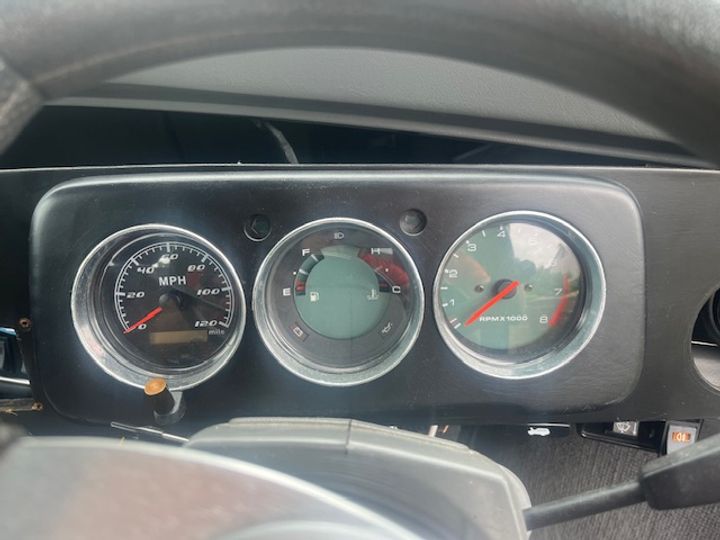

The only instrument cluster I can find that comes anywhere near to what I have is the centre (Fuel level, water temp) and right hand (tacho) of a classic Mini Cooper export cluster on eBay. However, the left hand (speedo & odometer) gauge is in a different colour and appears to have an electronic rather than manual odometer, although it may be an electronic display for a cable-driven odometer.
I have a wiring diagram for the 11 wires in the main 2x6 connector from the car harness but none are for an electronic odometer
[Edit: Having searched for some time I now see that the 2 gauges may have had a green dial kit fitted and that the speedometer and odometer might be an aftermarket GPS unit, although I haven't found a matching one. I'll take the gauges out during the week to see if there are any details on them.]
Can someone please help me eg with info on what gauges I have, where I can find a wiring diagram for them or a how to guide?
Thank you in advance for any interest.
There are several loose wires at its back and some wires are just pushed into the holes in terminals.
The instrument cluster is marked S0093 and YAC106950PM but I drew a blank when I searched these.
The only instrument cluster I can find that comes anywhere near to what I have is the centre (Fuel level, water temp) and right hand (tacho) of a classic Mini Cooper export cluster on eBay. However, the left hand (speedo & odometer) gauge is in a different colour and appears to have an electronic rather than manual odometer, although it may be an electronic display for a cable-driven odometer.
I have a wiring diagram for the 11 wires in the main 2x6 connector from the car harness but none are for an electronic odometer
[Edit: Having searched for some time I now see that the 2 gauges may have had a green dial kit fitted and that the speedometer and odometer might be an aftermarket GPS unit, although I haven't found a matching one. I'll take the gauges out during the week to see if there are any details on them.]
Can someone please help me eg with info on what gauges I have, where I can find a wiring diagram for them or a how to guide?
Thank you in advance for any interest.
Edited by JLGsDad on Sunday 6th July 16:08
wiring diagrams
https://www.classicminidiy.com/archive/electrical
to be fair it looks about right apart from its obviously got a digital speedo, although the standard cable is still there. There must be some wiring to a sensor on a driveshaft or something.
https://www.classicminidiy.com/archive/electrical
to be fair it looks about right apart from its obviously got a digital speedo, although the standard cable is still there. There must be some wiring to a sensor on a driveshaft or something.
