Changing room thermostat.

[chili1]

Morning,

I've currently got Drayton RTS1 (230v) thermostats that have yellowed quite badly. Would like to change them, and replace with digital thermostats. From what I've worked out, the Honeywell DT4 should be fine.
The RTS1 has 4 wires, DT4 is 2 wires.
From my understanding, I need to connect the red and yellow wires to the terminals, then terminate the blue and green/yellow in separate blocks.

Does that sound correct?

Cheers.

[Mr Pointy]

No idea; we can't guess from your description of the coulours of the wires. Post a picture of your current thermostat showing the wires & the little connection drawing & post a link to the item you want to replace it with or better still a picture of the connections.

[Simpo Two]

chili1 said:

I've currently got Drayton RTS1 (230v) thermostats that have yellowed quite badly...

Take the cover off and spray it white

[eps]

Simpo Two said:

chili1 said:

I've currently got Drayton RTS1 (230v) thermostats that have yellowed quite badly...

Take the cover off and spray it white

Actually you may well be able to lightly bleach / wash them... or just replace

[chili1]

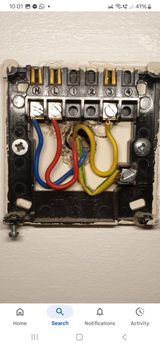

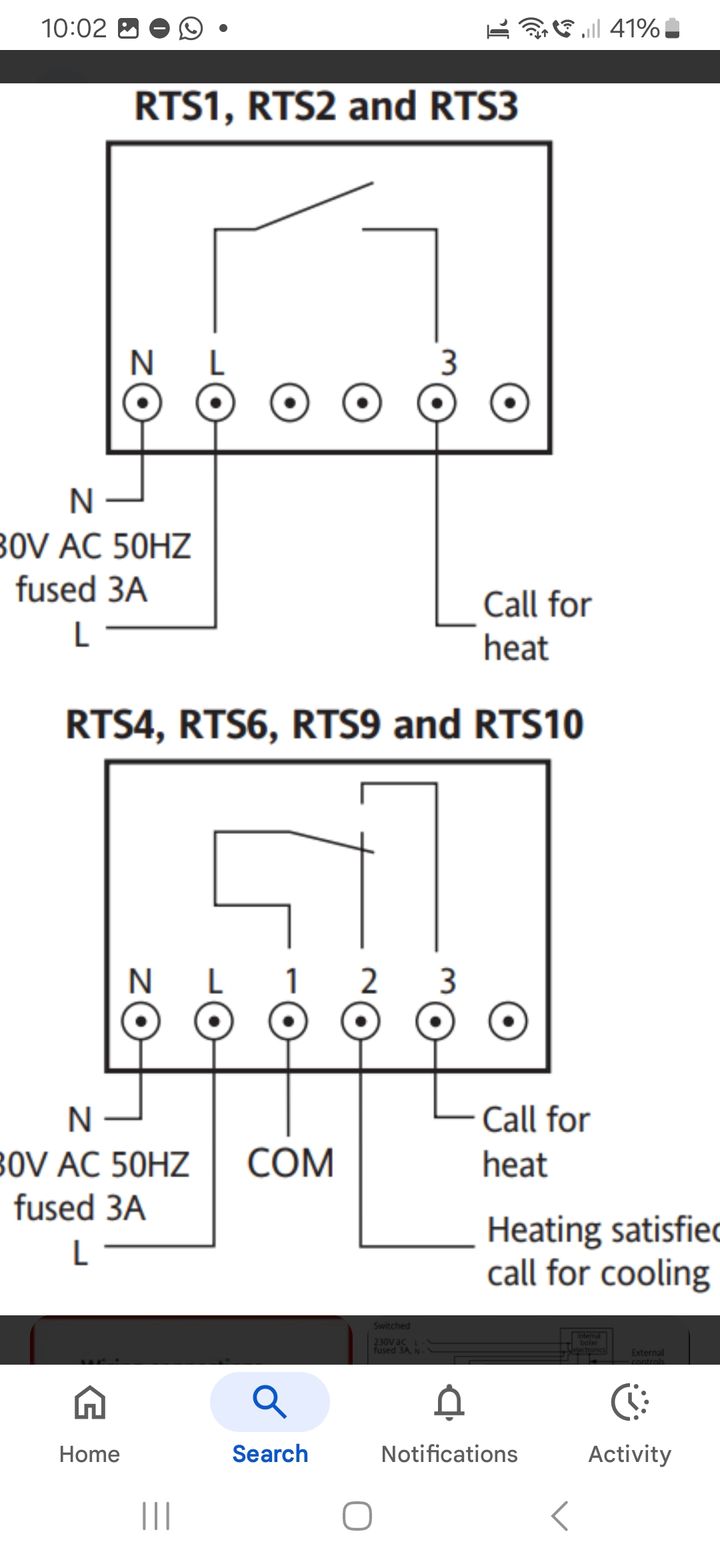

Current set up.

[chili1]

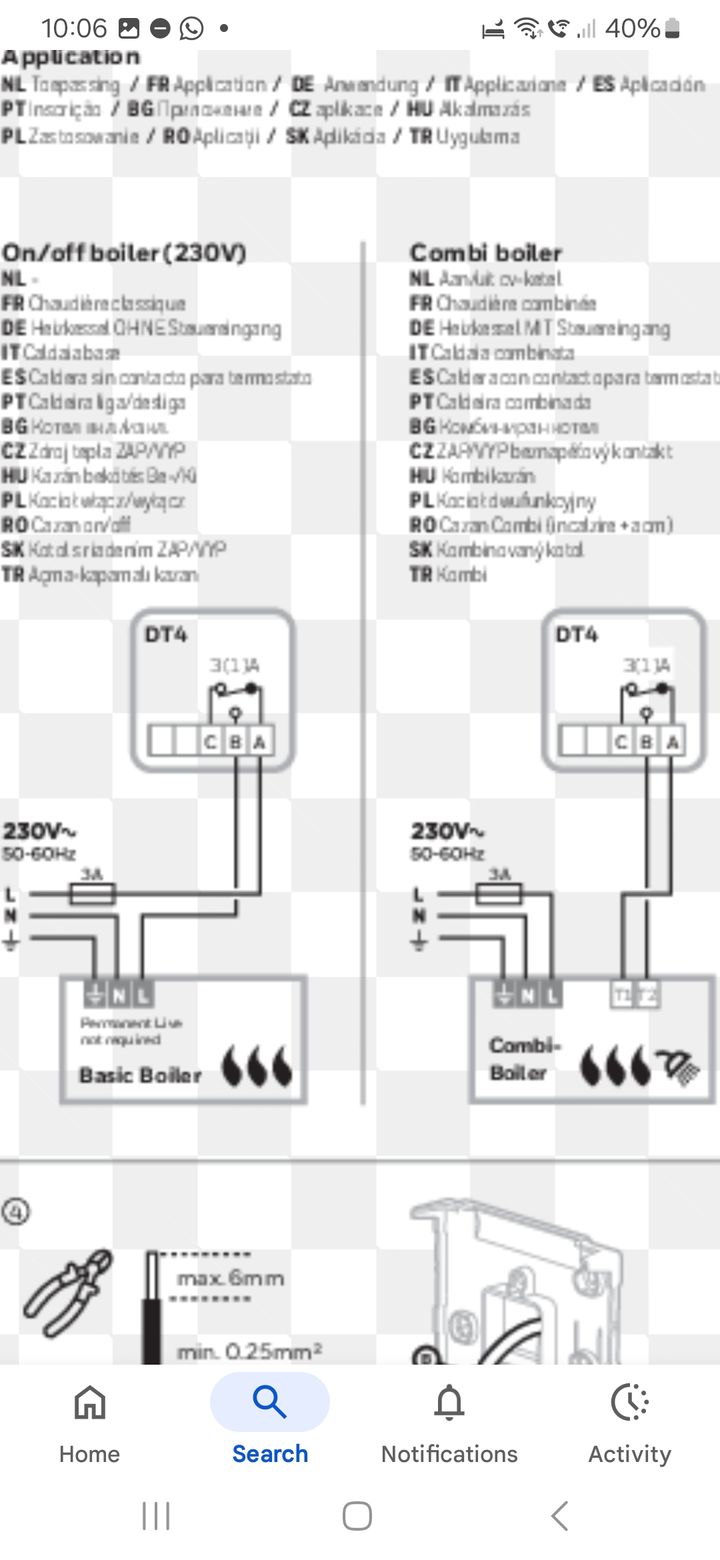

New wiring diagram. Boiler is logic heat 12.

[chili1]

Simpo Two said:

Take the cover off and spray it white

Thought about that, but dial is yellowed too. I'd have to guess the temperature if I sprayed that. Could be an interesting game in the winter tho!!

[119]

chili1 said:

Morning,

I've currently got Drayton RTS1 (230v) thermostats that have yellowed quite badly. Would like to change them, and replace with digital thermostats. From what I've worked out, the Honeywell DT4 should be fine.
The RTS1 has 4 wires, DT4 is 2 wires.
From my understanding, I need to connect the red and yellow wires to the terminals, then terminate the blue and green/yellow in separate blocks.

Does that sound correct?

Cheers.

From what I can make out you are correct

[chili1]

119 said:

From what I can make out you are correct

Thank you!

[Simpo Two]

chili1 said:

Simpo Two said:

Take the cover off and spray it white

Thought about that, but dial is yellowed too. I'd have to guess the temperature if I sprayed that. Could be an interesting game in the winter tho!!

It could work... if it's too cold, turn it up slowly until you hear the click...

My Honeywell thermostat is the colour of a 1980's dot matrix printer that's been left in a locked office in Dubai for 40 years, but it still goes... in fact I really need to clean the contacts as it does buzz rather a long time before kicking in. No idea how to though, and it's got mains inside!

[Mr Pointy]

chili1 said:

Simpo Two said:

Take the cover off and spray it white

Thought about that, but dial is yellowed too. I'd have to guess the temperature if I sprayed that. Could be an interesting game in the winter tho!!

Try Hydrogen Peroxide (Retrobrite):
https://duckduckgo.com/?q=yellow+plastic&t=ffa...

You need the max strength stuff.

[Mr Pointy]

119 said:

chili1 said:

I've currently got Drayton RTS1 (230v) thermostats that have yellowed quite badly. Would like to change them, and replace with digital thermostats. From what I've worked out, the Honeywell DT4 should be fine.
The RTS1 has 4 wires, DT4 is 2 wires.
From my understanding, I need to connect the red and yellow wires to the terminals, then terminate the blue and green/yellow in separate blocks.

Does that sound correct?

From what I can make out you are correct

Red & yellow to A & B, insulate the other two.
