help please - what engine is this?

[Orangecurry]

1300 Nord?

Thanks.

[LaceMarketLouis]

Chevy small block?

[Orangecurry]

198 months a member, and every post is pure gold.

[MarkwG]

LaceMarketLouis said:

Chevy small block?

Silly, it's obviously a 4 cylinder - Ford Zetec?

[Nigel_O]

Yes, I’d say that’s a Nord - no idea what size though - didn’t realise the range of capacities of the old twin-cam was so wide

[MikeM6]

MarkwG said:

Silly, it's obviously a 4 cylinder - Ford Zetec?

Silly, it obviously has Alfa Romeo written on it

Think it's a Nord based on a Gemini image search

[tscalfa]

On the crank pulley side of the cylinder head there are some markings/symbols which indicate the engine size. I think if you have a look on somewhere like Alfabb someone will know what the symbols are.

[Orangecurry]

tscalfa said:

On the crank pulley side of the cylinder head there are some markings/symbols which indicate the engine size. I think if you have a look on somewhere like Alfabb someone will know what the symbols are.

Thanks.

[alfaspecial]

Orangecurry said:

tscalfa said:

On the crank pulley side of the cylinder head there are some markings/symbols which indicate the engine size. I think if you have a look on somewhere like Alfabb someone will know what the symbols are.

Thanks.

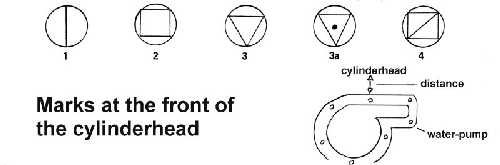

Number: Type: Bore x Stroke (mm): Capacity (ccm): Approx. distance in cm: Engine-number (flange):
1 1300 74 x 75 1290 nil 00530.xxxxxx
2 1600 78 x 82 1570 2,5 00536.xxxxxx
3 1750 old 80 x 88,5 1779 4,0 00548.xxxxxx
3a 1750 new 80 x 88,5 1779 4,0 00548.xxxxxx
4 2000 84 x 88,5 1962 4,0 00512.xxxxxx

Edited by alfaspecial on Saturday 21st June 19:02

[Orangecurry]

Thank you very much.

[Orangecurry]

Engine number looks like AR00526A*xxxxx

[alfaspecial]

From your photo I think its a 1600. Earlier cars, like yours, had the 'elephant foot sump, later cars had a more conventional sump.
Does your car have a spin off oil filter or is it a canister type.

I googled Alfa Romeo engine AR00526, the following thread may be of interest

https://www.alfabb.com/threads/engine-ar00526-a%C2...


Quote "The 00526/A*S engine type, produced from 1974-1989, was fitted to at least the Nuova Super, GT Junior 1.6 and Spider 1600 Junior."


One is for sale
https://classicalfa.com/80563-used-engine-block-16...
