Door Gearbox

[lexusdriver]

Hi Folks

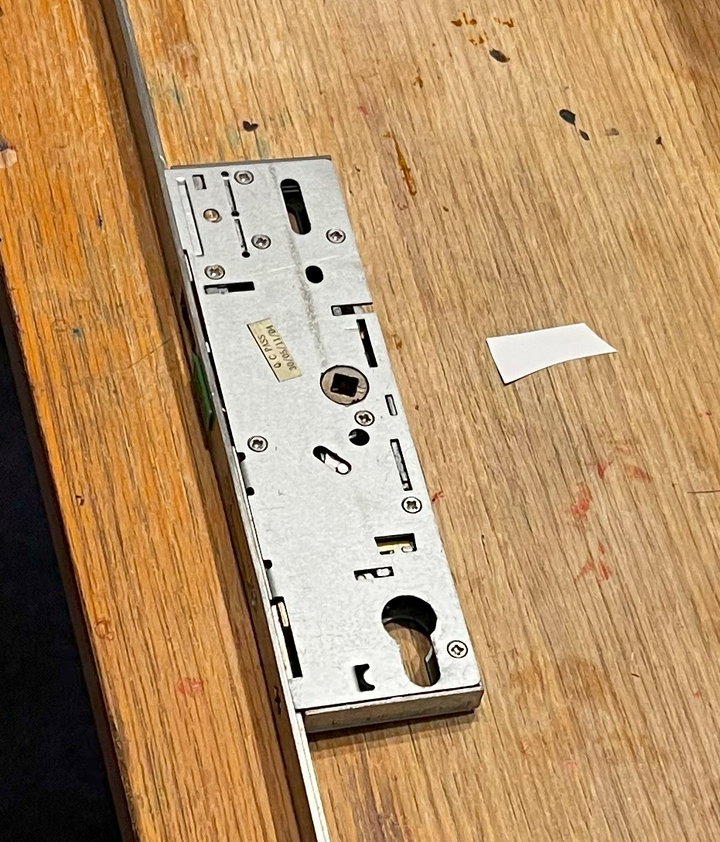

Gearbox failed a few weeks back and latch wouldn't retract. Managed to take the gearbox out and a piece of metal had broken off inside, and was preventing latch movement. I managed to get it working for now, but want to preventatively repair.

Door is a Solidoor.

How do I size it up? I can't find any identifying marks on the gearbox. I can measure spindle distance, etc., but would appreciate a bit of a steer please.

Thank you!

[vladcjelli]

First hit at toolstation after googling “replacement Upvc door gearbox” brought up what looks like an identical one.

https://www.toolstation.com/era-replacement-deadbo...

Hope it was a lucky hit for you!

[lexusdriver]

vladcjelli said:

First hit at toolstation after googling “replacement Upvc door gearbox” brought up what looks like an identical one.

https://www.toolstation.com/era-replacement-deadbo...

Hope it was a lucky hit for you!

Thank you @vladcjelli!

I did see this, but struggling on the difference between 35mm and 45mm.

Being a store, I could just nip over to collect, and return if no good.

Thank you

[vladcjelli]

lexusdriver said:

Thank you @vladcjelli!

I did see this, but struggling on the difference between 35mm and 45mm.

Being a store, I could just nip over to collect, and return if no good.

Thank you

If you can, take the failed one with, they’ll let you size it up at the counter.

[Jaz7646]

Its the measurement from the centre of the lock barrel to the front edge, eg:

https://www.ebay.co.uk/itm/125168784243?chn=ps&_ul=GB&var=426218528475&_trkparms=ispr%3D1&amdata=enc%3A1eELxjVayRjW-iH45mD_LQw32&norover=1&mkevt=1&mkrid=710-134428-41853-0&mkcid=2&mkscid=101&itemid=426218528475_125168784243&targetid=2425733423477&device=c&mktype=pla&googleloc=9219788&poi=&campaignid=21697391927&mkgroupid=162558106770&rlsatarget=aud-1162782600376la-2425733423477&abcId=10027104&merchantid=7295374&gad_source=1&gclid=Cj0KCQiAwtu9BhC8ARIsAI9JHalqNdiSD4kctVQVj5ysKbR0wpTrTxAdMK2EvresPP0D7Q1mDOVA6GAaAm26EALw_wcB

[lexusdriver]

Thanks guys!

[lexusdriver]

Reporting back.

Worked a treat. Thanks for your help, both!

[vladcjelli]

Good news!
