What Classics Are These Parts From?

[KTMsm]

Dad died a couple of years ago and we're still clearing out the sheds

Can anyone tell me what models these are from ?

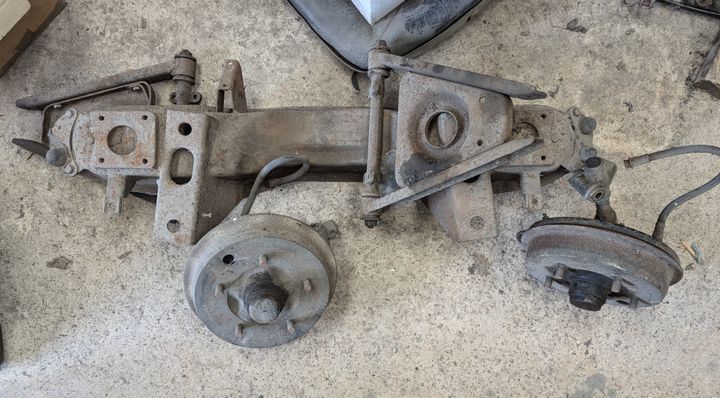

I believe this came from an old MG

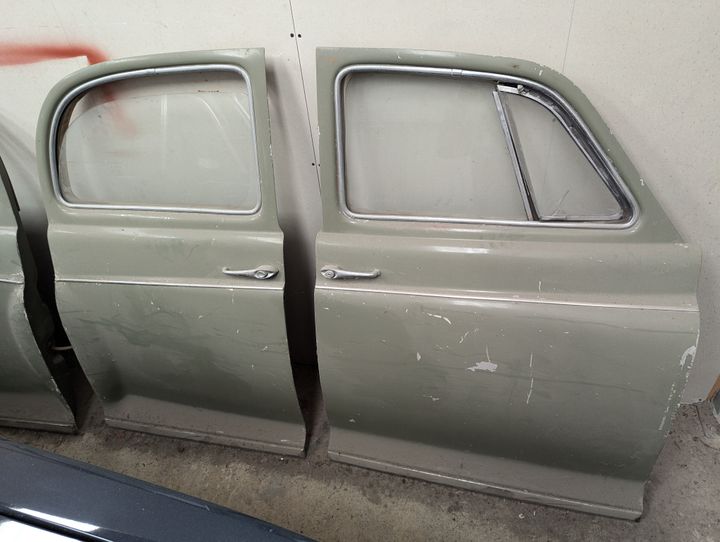

Obviously Rover but which one :

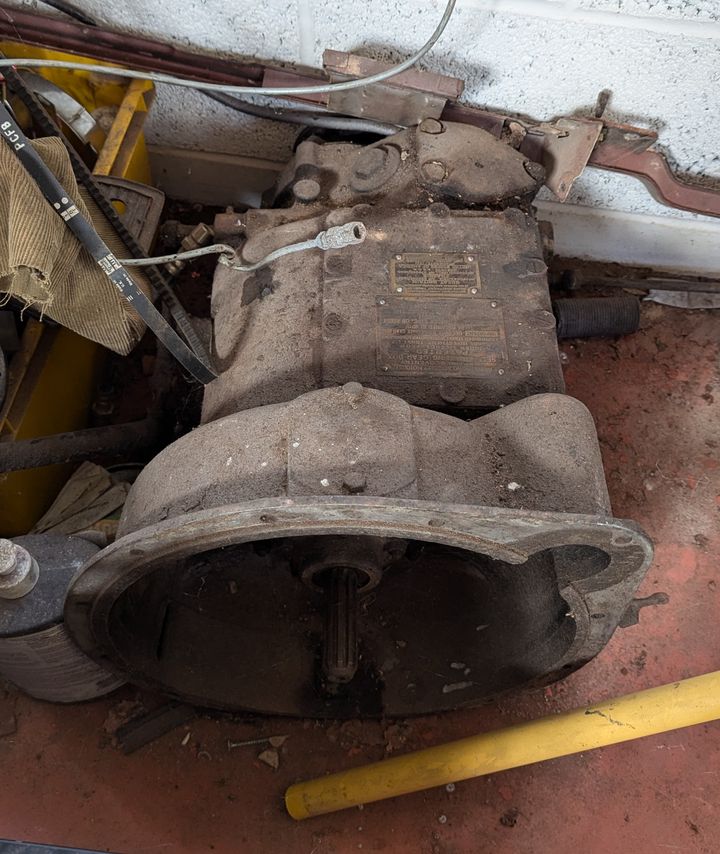

I think it's a Jaguar box with overdrive




I assume this is an early form of automatic





Jag ?

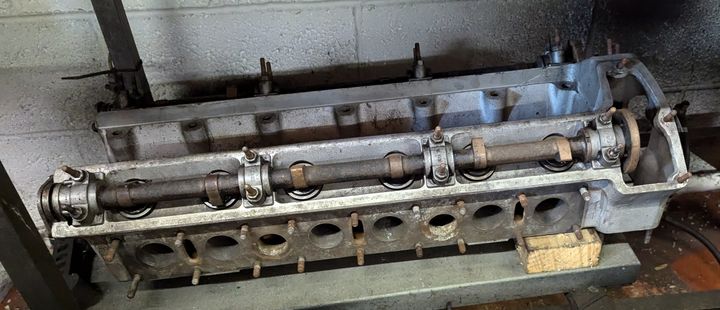

Dad seemed to think this Jaguar head was worth more than usual. I think he said it was a straight port ?



Thanks

[Puddenchucker]

Are the doors from a Rover P4?

[hidetheelephants]

Could be an MGB front cradle/subframe, Rover P4 doors and the gearbox will be a preselector, presumably from an Armstrong Siddeley.

[KTMsm]

Apparently the MG the parts came with was an old TD or similar

The doors are P4 - are they the same for 95 / 100 etc ?

[ferret50]

Pre select 'box could also be Daimler...

[shed driver]

ferret50 said:

Pre select 'box could also be Daimler...

Or Lanchester.

SD.

[Watcher of the skies]

Subframe looks like MGA or MGB, but the 5 stud hubs are a mystery.

[TonyRPH]

Could the 5 stud hubs be VW Beetle or Porsche?

[eldar]

TonyRPH said:

Could the 5 stud hubs be VW Beetle or Porsche?

Don't think so, the pitch is too central, later versions were 4 stud.

[niva441]

Watcher of the skies said:

Subframe looks like MGA or MGB, but the 5 stud hubs are a mystery.

With the drum brakes it will be no later than a 1500 MGA.

[hidetheelephants]

niva441 said:

Watcher of the skies said:

Subframe looks like MGA or MGB, but the 5 stud hubs are a mystery.

With the drum brakes it will be no later than a 1500 MGA.

5 stud suggests it might be off a bigger BMC offering like the Westminster.

[eldar]

shed driver said:

ferret50 said:

Pre select 'box could also be Daimler...

Or Lanchester.

SD.

Armstrong Siddeley, according to the plate on the box.

[Watcher of the skies]

niva441 said:

Watcher of the skies said:

Subframe looks like MGA or MGB, but the 5 stud hubs are a mystery.

With the drum brakes it will be no later than a 1500 MGA.

...assuming that the hubs belong to the subframe.

[niva441]

Watcher of the skies said:

...assuming that the hubs belong to the subframe.

Good point, the crossmember looks a lot like the one off my later rubber bumper B, with the ride height raising spacers on top.

[imagineifyeswill]

The front crossmember/subframe looks like MGB
