EG Civic Pandem K20 Turbo

[P155flaps]

In the process of building an EG civic so thought I would start a readers car thread to record updates.

Started out as a pretty mint 1.3 glacier but is far from that now.

First ever build / never really worked on a car so learning as I go.

Got as a part built project with the block built and the wiring part complete.

About a year into the build with a large % of that time being spend on a custom Tefzel harness (wish I had never started that!)

Pretty monster spec. Injectors fitted should be the limiting factor to about 750bhp (engine been build for 1000) but on lower boost 650bhp will be more than enough in something so light.

ENGINE:
Fully forged K20A2 engine.
Darton MID wet sleeves
88mm CP 9.5:1 forged pistons
Manley Turbo Tuff I-beam Conrods
Brand new OEM crankshaft
King Tri Metal race bearings
ARP L19 Headstuds
Fluidampyr harmonic crank pulley
All seals, oil squirters, bolts etc replaced with brand new oem parts.
Fully built head with ferrea comp 6000 vales, seats, springs,retainers, seals
Oem new LMA springs
Head fully polished with new valve seats and pressure tested
Golden Eagle head gasket
Drag cartel 3.2 cams
Toda Racing 35degee vtc gear
Skunk2 adjustable exhaust gear
Toda racing timing and oil pump chains
Brand new oem oil pump, hand ported
Drag cartel chain lower guide
Inline pro tensioner
Hybrid racing engine mounts
Skunk2 ultra race intake manifold
Ktuned billet 80mm throttle body
Skunk2 composite fuel rail + radium engineering fpr
grams 1150cc injectors
Osaka project coil packs
DW in tank 255lph fuel pump
DW 400lph fuel pump inside a radium engineering surge tank
DW high flow fuel filter
LA-FAB wg priority sidewinder manifold
Genuine Garrett G-series G30-770 turbo
Genuine Garret GVW 50mm watsegate
Speedfactory intercooler
Speedfactory 4 bar map sensor
Speedfactory 4 port boost controller
Acuity TPS
Mishimoto ep3 aluminium radiator
Exo racing twin spal fans with shroud
Ktuned electric water pump kit
Kpro v4
Moroso baffled sump
Radium competition catch can
140amp alternator
Brand new starter motor and engine sensors and various other t7design and k20 bolts and mating plates
Radium 6micron fuel filter
All custom fuel lines, turbo oil lines, water lines, coolant lines, oil cooler lines, oil cooler and thermostat -
Hks racing sqv
Skunk mega rr 3” exhaust with straight through down pipe.

Gearbox:
Fully rebult with oem bearings and seals
Synchrotech carbon synchro kit
Mfactory LSD
Speedfactory detent and gear selector springs.
Brand new bolts all around.
Competition clutch twin disk clutch + flywheel + ARP flywheel bolts
Acuity 2 way shifter
Ktuned race spec shifter cables
Insane shafts

SUSPENSION/BRAKES:
Spoon rigid collar kit
DC2 ITR subframe powdercoated, with dc2 steering rack converted to manual
Dc2 ITR 5x114 282mm front and 262mm brakes with fully refurbished calipers and arms + new wheel hubs and bearings -
Drilled grooved stop tech brake discs and pads
wildwood prop valve with brand new tucked brake lines
Honed developments booster delete kit
KW v2 coilovers
Hardrace front upper control arms
Hardrace tubular alu lower arms
Hardrace compliance bushes
Hardrace billet shock forks
Hardrace Tie rod end
Hardrace tie rod
Hardrace rear LCA
Hardrace rear ARB 25.4mm + brace
Ultra racing front ARB
Hardrace droppings front and rear
Hardrace rear toe arms
Hardrace rear trailing arm bushes
Japan racing flow formed allow wheels and nuts

INTERIOR:
Fully stripped and painted
Black dash with custom gauge pod made from factory trim
4x pro sport evolution gauges
Plx wideband gauge + sensor
S2000 speedo with qube engineering white led kit
Ktuned dash converter.
Complete custom rewire using tefzel spec wiring
Carbon door panels
Genuine works bell rapfix II quick release
Custom engine start pane
SW motorsport custom roll cage
SW motorsport custom seat brackets
Corbeau bucket seats
Momo wheel

EXTERIOR
Genuine Pandem v1 bodykit
New dark tint headlights
50/50 red/smoke taillights
APR GT3 side mirrors
Seibon TS style carbon bonnet
Rear carbon tail gate

Amazingly rust free just a tiny bit on one door and outer wheel wells which are being cut anyway.

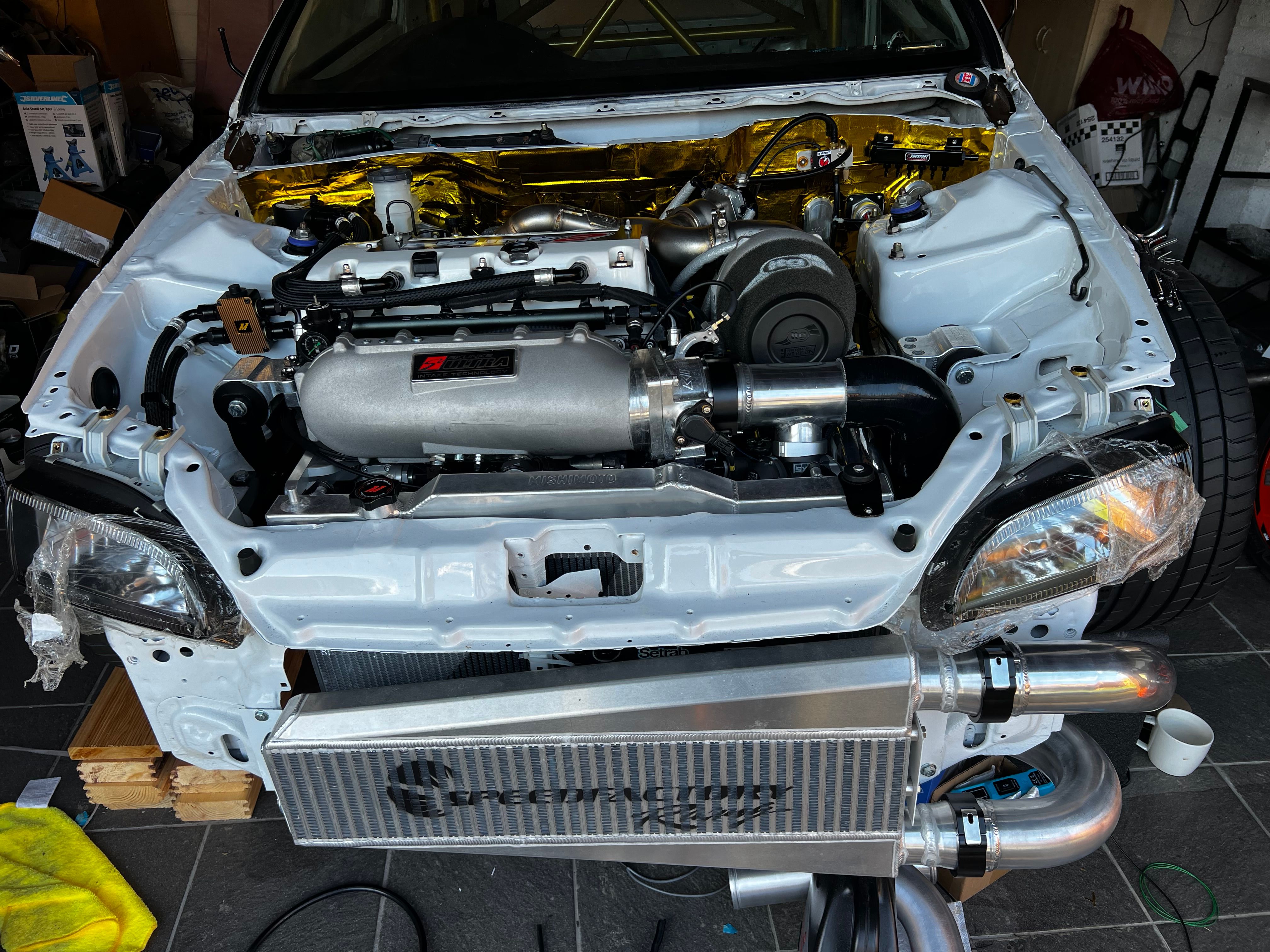

A few pics of progress so far..

[The Rotrex Kid]

Ooooof, love it. Who are you going to get to map it?

[Super Sonic]

Is this going to be a track car?

[P155flaps]

The Rotrex Kid said:

Ooooof, love it. Who are you going to get to map it?

Options down in Somerset very limited so will probably trailer it to dynodaze or CPL.

Currently has a HA Motorsport base tune to account for all the mods but want to get rest of car built so I can take it for tuning and geo etc all in 1 hit.

[P155flaps]

Super Sonic said:

Is this going to be a track car?

Will make it road legal (ish) so fast road and track.

[The Rotrex Kid]

That's going to be quite a machine! I have had mine mapped by Jcal in the past, he seems to have a good rep, could be worth looking him up for the mapping?

[P155flaps]

Ah cheers - looks decent and see he does slots in Barnstable some times at RCS Tuning which is only about 35 miles from me so would be ideal.

To crack on with rest of car. Current issue is have cut rear arches out for pandem flared rear and dropped the rear of the KW coil overs as far as they go and still need to drop another 3” or so.

So need to research something that allows a 5-6” drop over standard. Fronts look spot in with a 2” drop.

[The Rotrex Kid]

Yeah I will be going to see him at RCS when I have the opportunity as well. Certainly makes life a bit easier!

[Shuff4]

That’s quite some build, especially for your first but well done for such a big leap!

What you aiming for power to weight wise? Will be such a well thought out project if all goes to plan.

[P155flaps]

Shuff4 said:

That’s quite some build, especially for your first but well done for such a big leap!

What you aiming for power to weight wise? Will be such a well thought out project if all goes to plan.

Yeah bit of a leap but if you are gonna do it then do it! Welding and electrics been hardest to self learn but getting there.

My wife and kids thought I was mental when I arrived with that on a transporter full of bits and basically shell. Too much time on hands, late night eBay and beers has allot to answer for.

It’s fully stripped but and with heavier engine and half cage I suspect will be back in low 900kg range weight wise (possibly dipping the 800s as some of the original bits are crazy heavy compared to what I’ve refitted).

So I suspect with the injectors and without obscene boost levels will be somewhere in the 700 - 850 bhp per tonne range.
