My car came without the Alpine logo badges on the front wings, I've now decided I would like to add them so I've ordered a set.

I figure I need two measurements to make sure I put them in the right place

1. measurement from the bottom of the filler cap to the bottom of the horizontal line on the A
^
2. Measurement from the side of the cap to the start of the horizontal > A

I can then take appropriate measurements to copy on the non fuel cap side

Would someone be kind enough to measure their car as above and give me the numbers?

Many thanks

Shaun

Colin P

499 posts

158 months

Yesterday (19:24)
quotequote all
Put one in the middle of the fuel filler cap, the curve in the badge will help locate it for you. Then replicate the position on the other side.

shaunwap

Original Poster:

48 posts

4 months

Colin P said:
Put one in the middle of the fuel filler cap, the curve in the badge will help locate it for you. Then replicate the position on the other side.
Thanks Colin, that works for height but it looks a but trickier to get it looking centred from left to right due to the badge not being symmetrical?




samcole28

13 posts

13 months

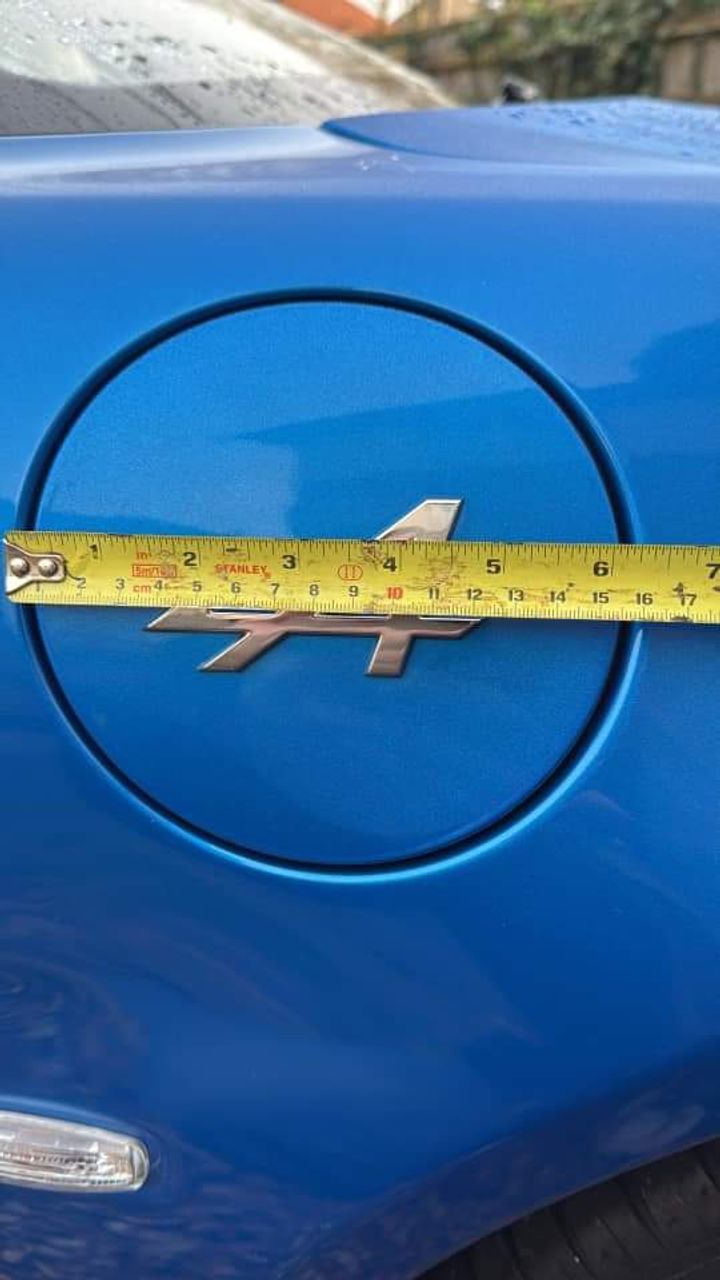

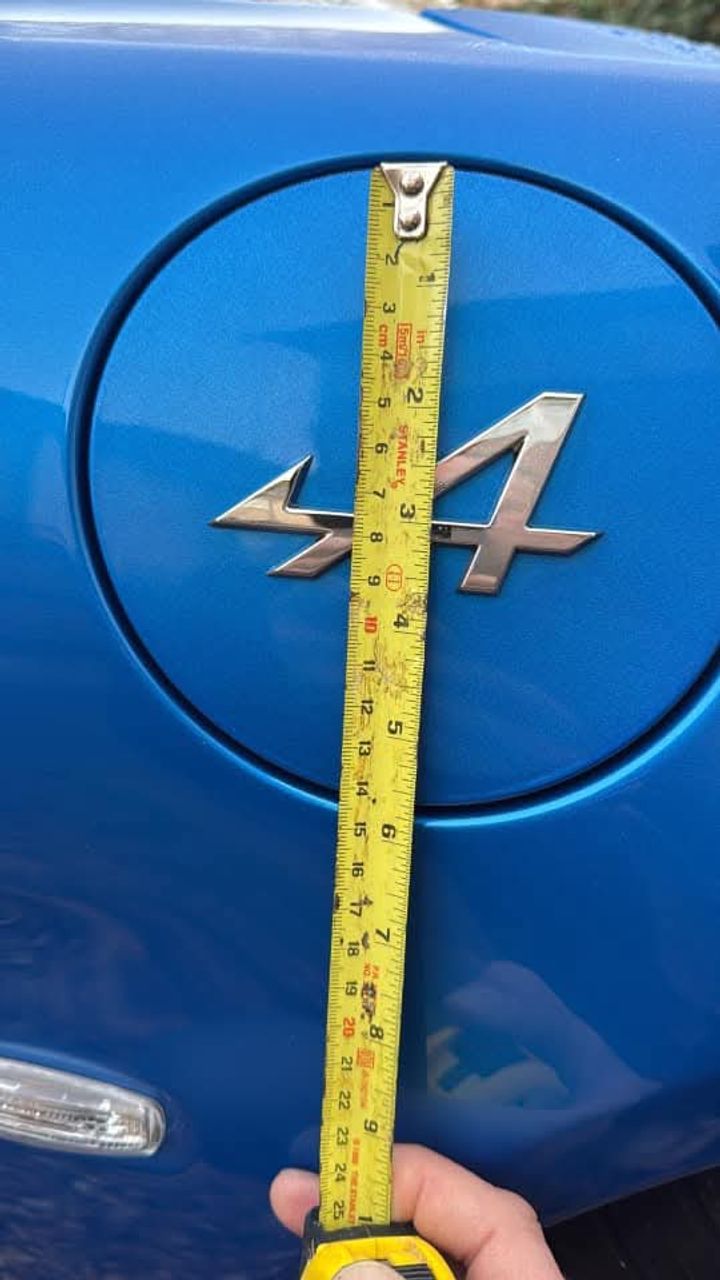

I have these images saved from someone on the Facebook group as I am looking to get the badges as well. Hope they help smile
[url]|https://forums-images.pistonheads.com/687764/202507013791838

[/url][url]|https://forums-images.pistonheads.com/687764/202507013802523

[/url][url]|https://forums-images.pistonheads.com/687764/202507013804298

[/url]

Edited by samcole28 on Tuesday 1st July 10:38

shaunwap

Original Poster:

48 posts

4 months

That's exactly what I need, many thanks cool

7en

324 posts

26 months

I'm still 50/50 on whether to add the badges myself but good info.

Sporky

8,398 posts

79 months

I didn't. Think of the extra weight!
